Explanation
This procedure outlines exporting your Cables List to excel.

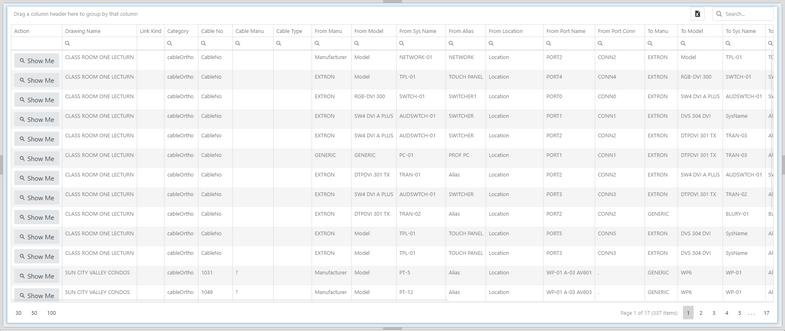

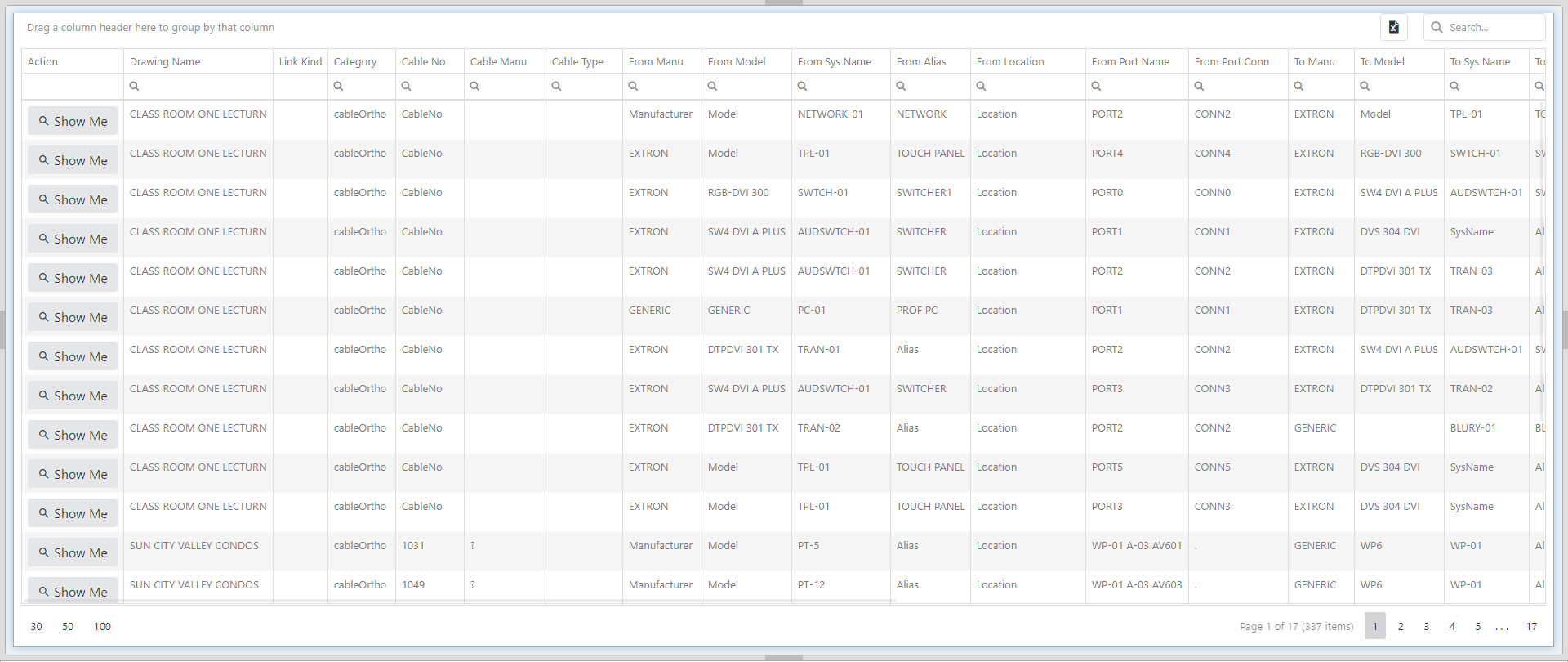

The Cables List shows connection detail for each cable. It is very detailed.
The list is separated into the FROM side of the cable and the TO side of the cable.
Assumptions
•You have created a project.
•You have created at least one drawing.
•You have added at least two item that meets the criteria list above.
•You have added at least one cable.
Menu
Project Data > Cables
Steps
1.Open the Project.
2.Open the Project Data > Cables
3.Click File > Export to Excel or click the Export icon [
]
4.File will be downloaded to your browser's downloads directory.
5.Done.
