Explanation
How to draw a cable between two ports
Assumptions
•You have created a project.
•You have created a drawing.
•You have added two functional blocks to the drawing.
Menu
The Select tool must be active.
To Draw a Cable:

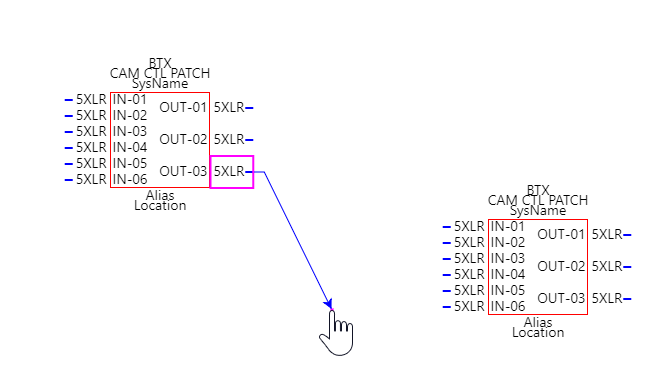

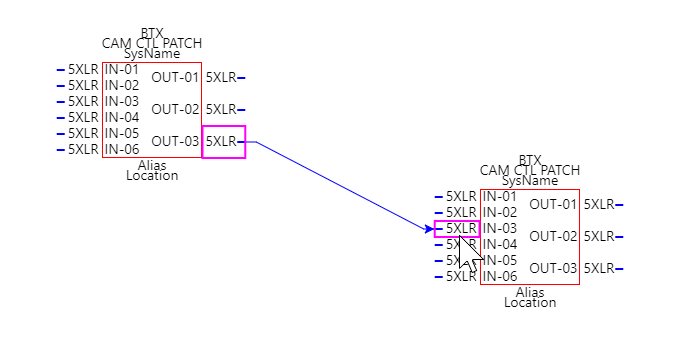

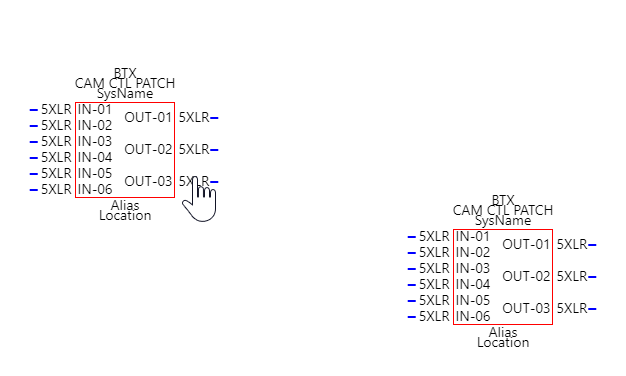

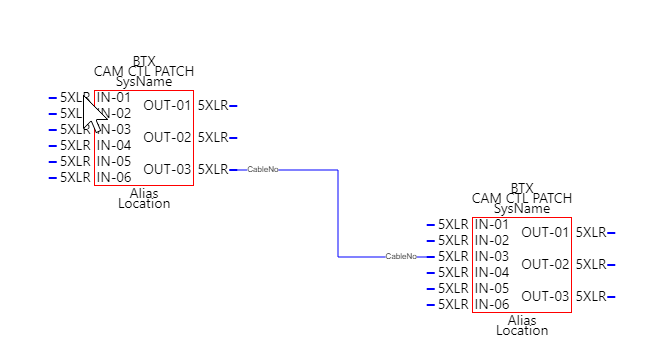

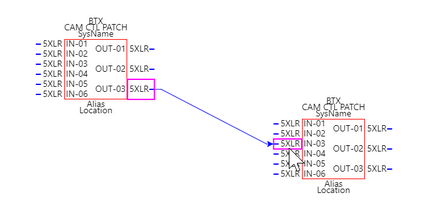

Hover over a port that you want to connect a cable to, click and drag to the other port that you would like to connect to.
