Explanation
This topic outlines the process to reposition a cable.
Note that this function can be undone by moving the block on either end of the cable and causing the cable routing tool to take over.
Assumptions
•You have created a project.
•You have created a drawing.
•You have added two functional blocks to the drawing.
•You have added a cable to the drawing.
Menu
None
Steps

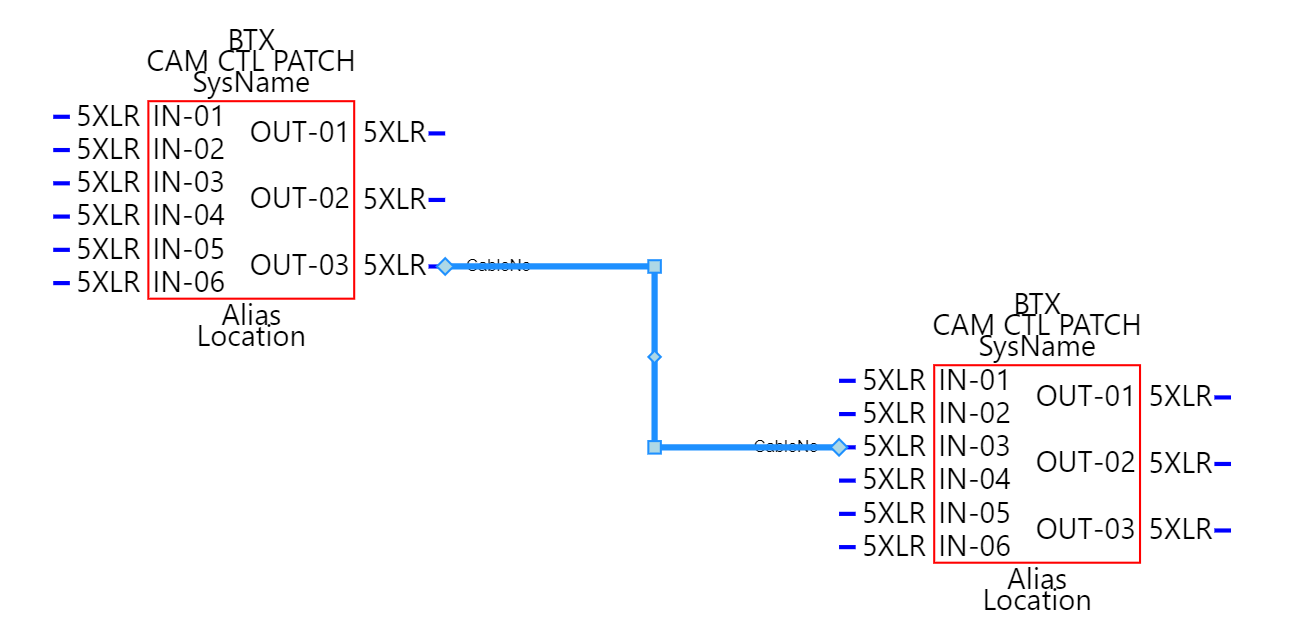

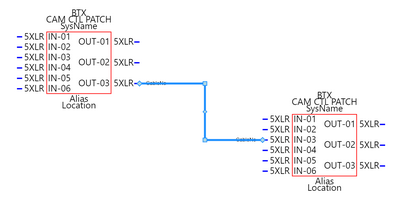

1.Select the cable that you want to reposition. This will display its grips. Grips appear at the endpoints and midpoints of line segments.
2. Click & drag a grip to move it.
3. Done.
The grips have different behaviors:
•StartPoint/Endpoint grips - Detach from the current port and attach to another port.
•Vertex grips - move the vertex pair to reposition the cable orthagonally. The vertex grips cannot be moved in a direction that would cause the segment to detach/re-attach.
•Midpoint grips - add a new segment.
