Explanation
Expandable section functional block prototypes.
Drag an item and drop in the drawing to place it.

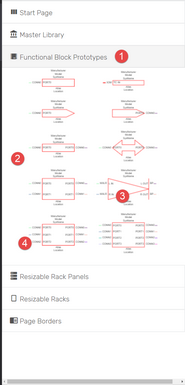

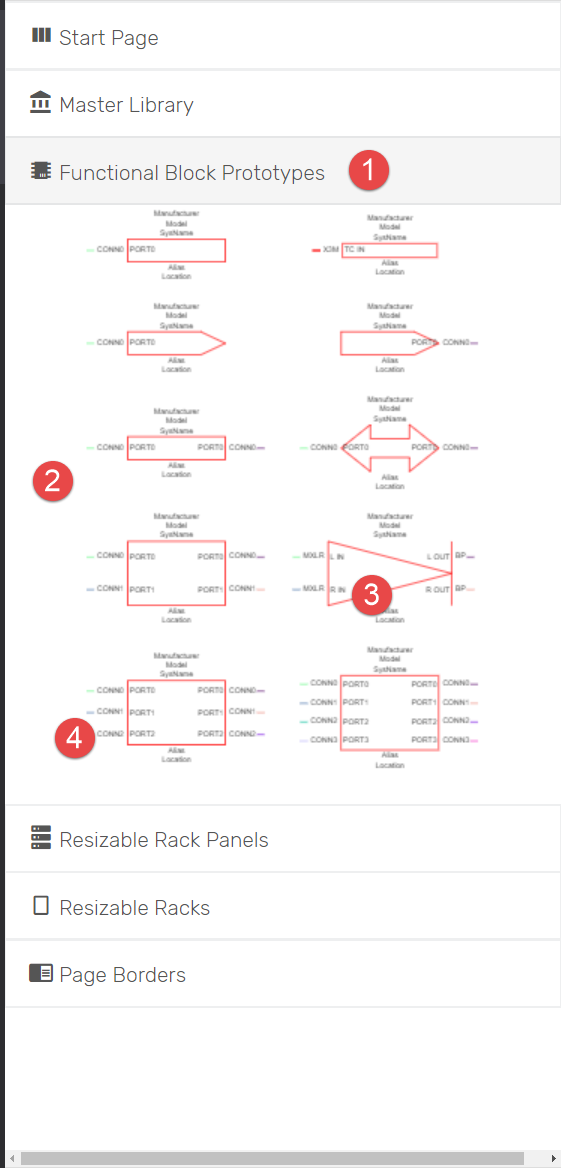

1.Collapsable section header. Click to expand/collapse the Functional Block Prototypes.
2.Prototypes. Drag an item into the drawing and edit it.
3.Body Stroke Color, Width and Fill are determined in the Settings menu. Descriptor text inherits from the Active Text settings.
4.Pin color is random until placed at which point it will inherit from the Signal Types grid.
