Explanation

This procedure outlines creating a functional block from a prototype.

Prototypes are shapes that have been created with generic data.

Assumptions

•You have created a project.

•You have created a drawing.

•You have set the Settings > Active Stroke Color and Active Fill Color to your liking.

1.Open the drawing that you want to add a functional block to.

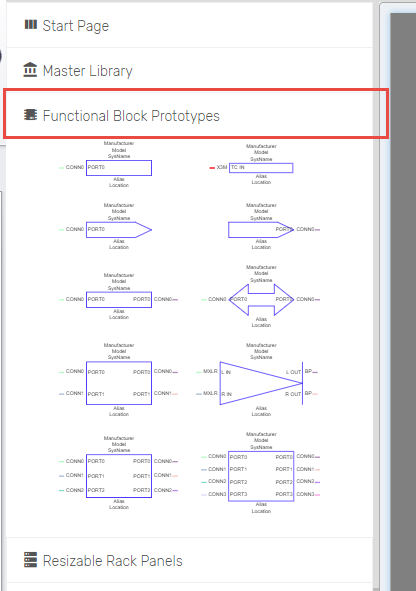

2.Expand the Functional Blocks Prototypes section of the left-hand sidebar.

3.Drag the prototype of interest into the drawing and drop it.

4.Edit the port and connector names.

5.Done.
