Explanation

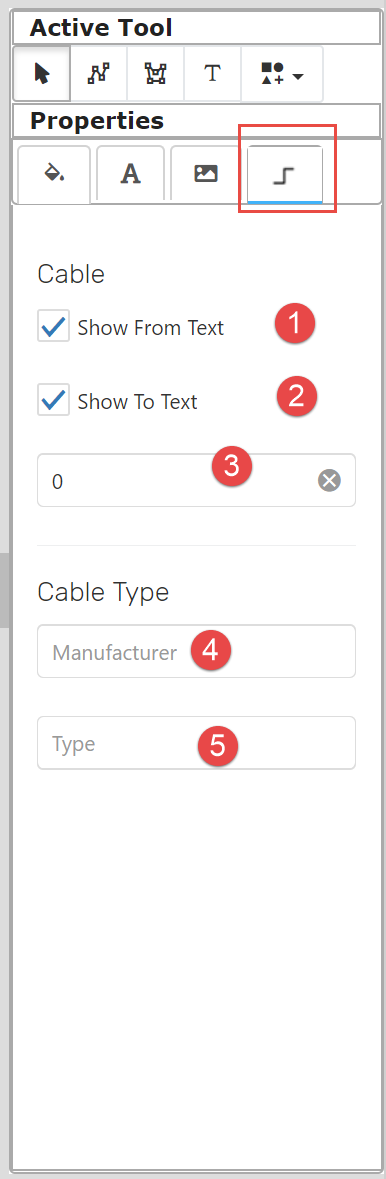

Cable properties of the select cables(s).
1.Sets visibility of the cable number text on the FROM side of the cable(s).
2.Sets visibility of the cable number text on the TO side of the cable(s).
3.Lock Position: Locks the position of the cable. Doing so also locks the equipment on both sides of the cable.
4.Set the Length of the cable(s). This value is stored in the Project Data>Cables grid in the Length field.
5.Set the Width, Line Type, and Color by Signal Type. Set to true to inherit the properties from the Project Data>Signal Types grid. Setting to false allows setting the properties in the tool panel below.
6.Cable Line Width if [Stroke by Signal Type] = false.
7.Cable Line Type (Solid, Dashed, etc.) if [Stroke by Signal Type] = false.
8.Cable Line Width if [Stroke by Signal Type] = false.
9.Cable Line Color if [Stroke by Signal Type] = false.
10.Cable Type by Signal Type. If true inherits the Cable Type and Manufacturer from the Project Data>Signal Types grid.
11.Set the Cable Type Manufacturer of the cable(s).
12.Set the Cable Type of the cable(s).
