Explanation

This procedure outlines exporting your Equipment List to excel.

Simple Wires organizes information from your drawings by project.

The Project Equipment List will be aggregation of all equipment across all drawings in the project.

In order to be included in the list the Equipment must meet the following criteria:

•Be a functional block - either from the Master Library or a Prototype.

•Be Resizable Rack Panel.

•Be a Resizable Rack.

Assumptions

•You have created a project.

•You have created at least one drawing.

•You have added at least one item that meets the criteria list above.

1.Open the Project.

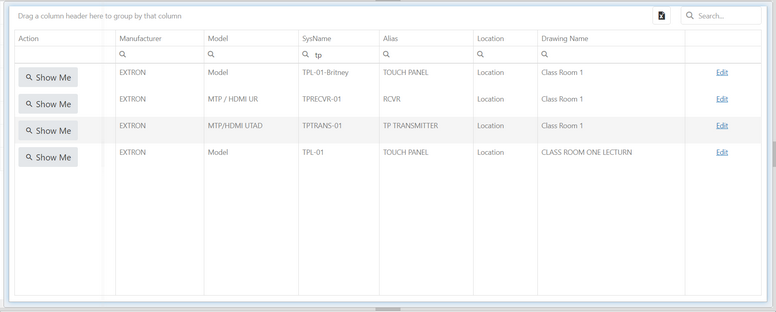

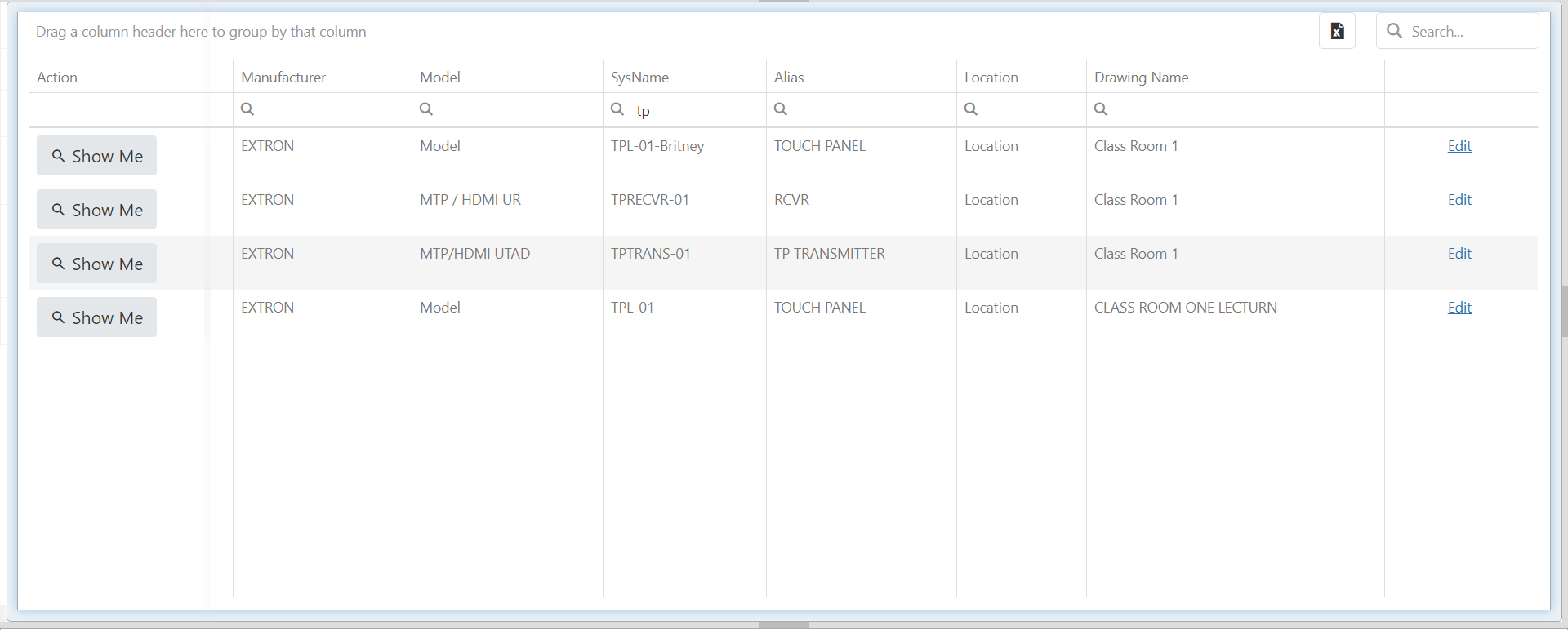

2.Open the Project Data > Equipment List.

3.Click File > Export to Excel or click the Export icon []

4.File will be downloaded to your browser's downloads directory.

5.Done.
